Steel Haven Structures is a leading provider of Pre - Manufacture Solid Steel Custom Buildings. Delivering to all States, Counties, and Municipalities In the USA.
As a premier manufacturer of custom-engineered Solid Steel buildings,Steel Haven Structures
understands exactly what it takes to make a building project successful. We put our customers at the forefront and have the knowledge, capabilities, and experience to meet your Steel building needs.
Steel Haven Structures as a premier manufacture of custom-engineered building provides you with knowledge, affordability, and customer service. Through out your building process.

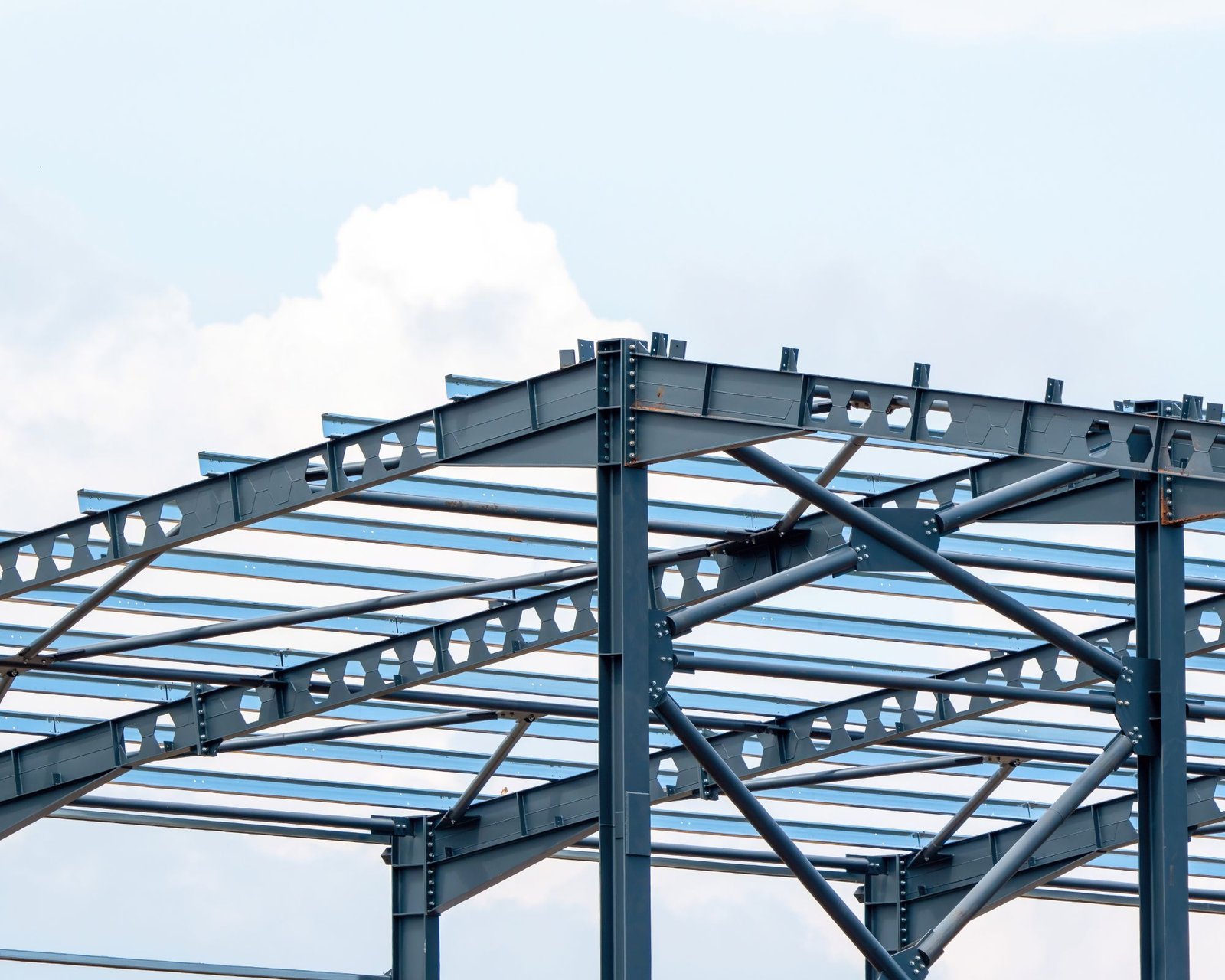

Bolt Steel Buildings offers a full range of building frame systems, including primary and secondary frames as well as building bracing. Bolt Steel Buildings framing systems are ideal for both new construction and renovation projects. Each frame is custom-designed to meet both building codes and project specifications.

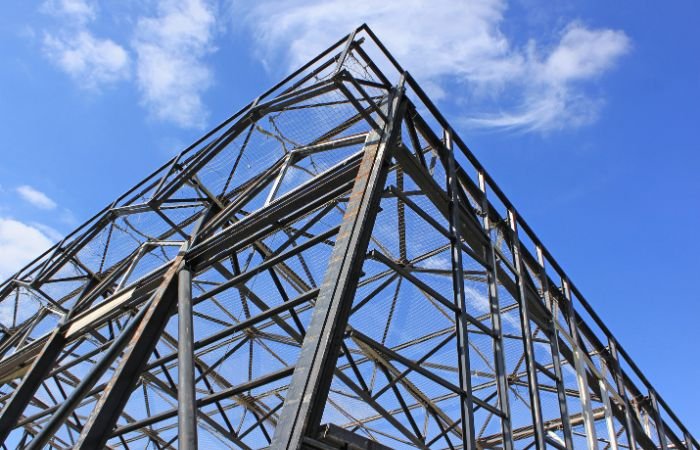

Bolt Steel Buildings primary steel frame systems consist of interior building frames, building end frames – including rafters, corner posts and end posts – and crane systems. Primary frames span the width of a building and are designed for full bay loading.
A rigid interior frame consists of welded-up rafter and sidewall column sections. Rigid frames are available as symmetrical, asymmetrical and single-slope shapes in clear span and multi-span options. Sidewall columns are pinned at the base but may have a fixed base for special applications. Rafter is continuous throughout with a single ridge. Interior columns used with multi-span rigid frames are pipe sections with pinned connections at both ends; standard and fixed connections optional. Building frame systems are designed by stiffness analysis. Note: pipe sections are the standard offering for interior columns with built up members and hot rolled shapes as additional options.
Bearing end frames and rigid end frames (half load) are used at end walls of building systems where future expansion is not anticipated. Rigid end frames (full load) are used where future expansion at that end of the building is anticipated. End posts in full load rigid end frames are designed to provide girt support for a “temporary” end wall. Members are formed from hot rolled or welded-up members.
Bolt Steel Buildings engineers will design bracing to meet wind/seismic load requirements for any given building. Diaphragm bracing will be used whenever appropriate, but will be supplemented and/or replaced with rod, angle, or cable bracing when diaphragm capacity of sheeting is inadequate. If building requirements preclude the use of rod bracing in side walls, this “X” bracing will be replaced by cantilever columns, or portal frames.
Bolt Steel Buildings is a leading provider of pre-manufactured solid steel custom buildings. We offer affordable options without compromising on quality and durability. Our knowledgeable staff provides exceptional customer service throughout the building process. Contact us today for a high-quality solution tailored to your specific needs.

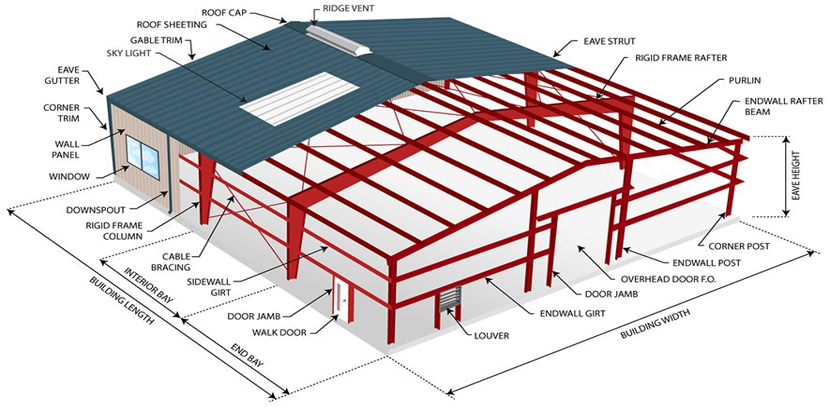

Bolt Steel Buildings secondary structural framing systems include purlins, girts, eave struts, base members, flange bracing, gable angles, clips and more.
Each Bolt Steel Building is engineered to withstand its specific wind and seismic load requirements using components from our extensive bracing system allowing for diaphragm bracing, angle bracing, cable bracing, rod bracing or portal frames.
Bolt Steel Buildings Long Bay System is custom-engineered to allow for flexibility in architectural design while accommodating structures needing extended areas of open floor space.
